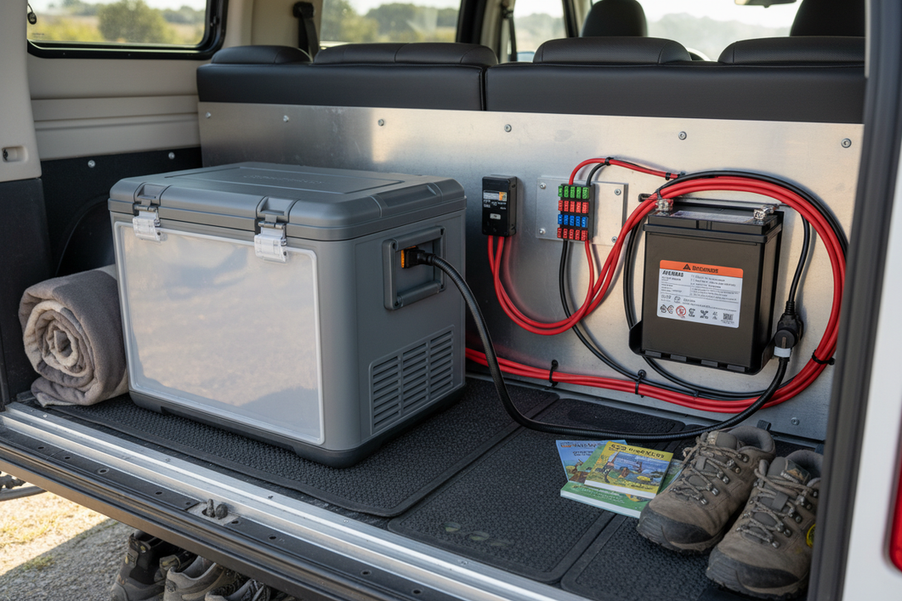

A practical way to learn how to wire a dual-battery system for a car refrigerator in an RV is to give the refrigerator its own protected path from an auxiliary or house battery while reserving the starting battery for engine starting. Charging may come through an isolator, DC-to-DC charger, converter, solar controller, or an existing RV distribution system, but the correct combination depends on the exact vehicle, refrigerator, battery, charger, and wiring layout. A dual-battery arrangement is a planning model, not a guarantee that the starting battery cannot discharge.
Before connecting anything, gather the refrigerator manual, battery documentation, charger or isolator instructions, RV converter and solar information, and a map of existing battery and ground connections. The refrigerator's low-voltage protection can help prevent excessive discharge, but it does not replace overcurrent protection, correct cable sizing, sound connections, or a suitable battery plan.
Separate Starting Power From Refrigerator Power
The starting battery should remain dedicated to engine starting, while the auxiliary or house battery supplies the refrigerator and approved house loads. A controlled charging and isolation path can connect the batteries when charging is available, but its operation must be checked against the vehicle and device manuals. Multi-battery installation guidance illustrates why the final arrangement depends on application-specific wiring and circuit-protection instructions rather than one universal layout.
Start by answering four layout questions:
- Is there already a house-battery bus or fuse panel in the RV?
- Which sources can charge that battery: alternator, DC-to-DC charger, shore-power converter, solar controller, or generator-related equipment?
- Will the refrigerator connect through a dedicated outlet, a fuse block, or another approved distribution point?
- What should happen when the engine is off overnight or the RV is parked without shore power?
The refrigerator branch should stay on the auxiliary side during engine-off use. Do not assume that an existing 12-volt outlet, chassis ground, isolator, or factory battery connection provides the needed protection or isolation. Confirm each path before choosing components.
For additional buying context, compare the portable refrigerator power factors, but use the refrigerator's own manual for electrical requirements.
How to Wire a Dual-Battery System for a Car Refrigerator in an RV: Choose the Components
Select the parts as a connected system, not as isolated shopping-list items. Expected current, complete cable length, battery chemistry, installation environment, connector limits, and each manufacturer's instructions determine the final choices.
| Component | Required Inputs | Compatibility Check | Failure Risk If Assumed |
|---|---|---|---|
| Auxiliary battery | Chemistry, usable capacity, temperature, mounting, ventilation, refrigerator and house loads | Confirm the refrigerator and every charging source support the battery type and charge profile | Poor charging, unexpected shutdown, battery damage, or unsafe installation conditions |
| Charging or isolation device | Alternator behavior, charging source, current, battery roles, control requirements | Follow the selected device's diagram and confirm input, output, and isolation requirements | Unintended current paths, nuisance trips, or incompatible charging |
| Battery-side protection | Expected current, conductor rating, device instructions, connection location | Protect battery-connected positive conductors as required by the applicable manual; the device-specific wiring example shows why protection placement must follow the selected device's documentation | An unprotected fault can overheat a conductor before the downstream device responds |
| Refrigerator branch protection | Refrigerator instructions, branch current, cable and connector limits | Confirm the refrigerator's required connector and protection method | Blown protection, damaged wiring, or an unreliable refrigerator circuit |
| Disconnect | Battery location, service access, device instructions | Confirm what the disconnect actually isolates and whether other charging paths remain live | The system may appear off while another source remains connected |
| Positive and negative cable | Expected current, complete path length, routing, temperature, abrasion and moisture exposure | Use the applicable sizing reference and manufacturer limits; low-voltage systems are sensitive to voltage drop, so nominal gauge alone is not enough. This wire-sizing reference is a methodology reference, not a universal sizing table for this RV | Refrigerator shutdown, heating, or excessive loss along the circuit |
| Terminals and ground path | Stud size, conductor type, return length, chassis design, service conditions | Verify terminal fit, crimping method, negative return, and any approved chassis-ground point | High resistance, intermittent operation, heat, or an incomplete circuit |
| Monitoring | Battery state, branch behavior, charging sources, access to measurement points | Use monitoring to observe the system, not as a replacement for protection or sizing | A reading can look normal while a connector or conductor fails under load |
Assign the Starting and Auxiliary Battery Roles
Keep the starting battery dedicated to engine starting and place the refrigerator on the auxiliary battery or an approved house distribution bus. Check the auxiliary battery's chemistry, usable capacity, mounting, ventilation, temperature range, and terminal requirements against its documentation. Capacity alone does not predict runtime without the refrigerator's measured or documented draw, duty cycle, temperature, other loads, and charging intervals.
Select the Charging and Isolation Method
Map every charging source before adding an isolator or charger:
- Alternator: Confirm the vehicle's charging behavior and whether the selected device is designed for it.
- DC-to-DC charger: Check battery chemistry, charge profile, input and output current limits, control behavior, and the device's required protection and connection arrangement.
- Shore power: Identify the existing converter or charger and confirm its battery profile and connection to the house system.
- Solar: Identify the controller, battery chemistry setting, output limits, and whether solar already connects to the auxiliary battery.
- Existing RV wiring: Trace house buses, chassis grounds, disconnects, and factory charging paths before making a parallel connection.
A charger-specific diagram should control the final connection order. Do not combine a converter, solar controller, alternator feed, and DC-to-DC charger simply because they all connect to the same battery. Their chemistry settings, control behavior, and approved connection arrangements must be compatible.
Size Fuses, Cable, and Ground Paths From Evidence
Treat fuse and cable selection as a calculation and documentation task. Record the expected current for each segment, the complete positive-and-negative circuit length, cable conditions, terminal limits, protection location, and the source of each rating. A fuse is not selected simply because it is larger than the refrigerator's normal draw, and a larger fuse is not a remedy for undersized or damaged cable.
Size the negative return as deliberately as the positive conductor. A chassis return is acceptable only when it is supported by the RV or vehicle design and the applicable instructions. If the return path, cable condition, or connection point cannot be verified, stop before energizing the circuit.
Map the RV Dual-Battery Wiring Path
Use this as a conceptual planning sequence for how to wire a dual-battery system for a car refrigerator in an RV. It is not a universal terminal diagram; terminal names, protection requirements, and connection order come from the exact device manuals.
Build the Protected Positive Paths
- Disconnect the starting battery, auxiliary battery, shore power, solar input, and other charging sources according to the applicable instructions.
- Identify battery polarity, the existing house bus, all charging paths, the refrigerator connector, disconnect points, and any chassis-ground connections.
- Plan the refrigerator branch from the auxiliary battery or approved house distribution point through the specified protection and disconnect to the refrigerator.
- Plan the charging branch separately through the specified isolator or charging device, with battery-side protection required by that device and wiring arrangement.
- Label each source, destination, fuse or breaker, disconnect, and service point before routing conductors.
A practical 12-volt refrigerator wiring workflow also treats the refrigerator as a protected branch and emphasizes checking polarity and connection details against the equipment used. Use it as background workflow guidance, not as a substitute for the refrigerator and charger manuals.
Complete the Negative Return and Physical Routing
- Complete the negative return using the documented cable and termination method. Do not substitute an unverified chassis point because it is nearby.
- Route and secure positive and negative conductors away from exhaust components, sharp edges, moving parts, moisture, and areas that can pinch or abrade the insulation.
- Inspect every termination, strain-relief point, connector, and protection holder before reconnecting any source.
- Leave access for inspection and service, and label cable routes so future troubleshooting does not depend on memory.
Verify that the negative return can carry the operating current through the same environmental conditions as the positive conductor. Confirm the terminal fit and crimping method, then check any chassis connection against the RV design and device instructions. If the negative path is uncertain, the circuit is not ready for a live test.
Match the Setup to How the RV Is Used
The best dual-battery setup for an RV refrigerator depends on when the refrigerator runs, when charging is available, and what other loads share the auxiliary battery. Use this qualitative matrix to choose what to verify first rather than to predict runtime or battery capacity.
| Operating Condition | Refrigerator Source | Possible Charging Source | Primary Design Question | Monitoring or Compatibility Check |
|---|---|---|---|---|
| Driving | Auxiliary or house battery | Vehicle-compatible alternator path or DC-to-DC charger | Does the selected charging method match the vehicle and battery? | Check charging behavior and branch operation under actual load |
| Engine-off overnight | Auxiliary or house battery | None, or an approved source if connected | Is there an unintended path to the starting battery? | Check engine-off isolation and refrigerator voltage at its connector |
| Repeated boondocking | Auxiliary or house battery | Solar, generator-supported charging, or periodic driving | Do total daily loads exceed available usable energy and charging opportunities? | Monitor refrigerator and other loads; account for weather and temperature |
| Shore-power connection | Auxiliary or house battery through the house system | Existing converter or approved charger | Can the converter, solar controller, and any added charger operate together as documented? | Trace every charging path and compare battery charge profiles |
Plan for Driving, Overnight Stops, and Shore Power
Short drives with overnight stops prioritize a verified auxiliary branch and controlled charging path; limited driving time may not restore all energy used while parked. During repeated boondocking, the design must account for every DC load and variable charging conditions. With shore power connected, trace the existing converter before adding another charging device. The refrigerator can remain on the auxiliary side in each case, but the active charging source and isolation behavior change.
When evaluating available car refrigerator options, use the exact model's electrical documentation, not a category page, as the basis for wiring decisions.
Estimate Load Before Choosing Battery Capacity
Build a load estimate from the refrigerator's documented or measured consumption, expected duty cycle, temperature and settings, other RV loads, inverter losses if an inverter is involved, usable battery capacity, and charging intervals. Compare that estimate with the conditions in which the RV will actually be parked.
Do not convert nominal amp-hours directly into a promised number of hours. The estimate becomes less reliable when the refrigerator draw is unknown, temperatures vary, the battery is aging or cold, other loads are intermittent, or charging availability changes. Monitoring can improve the decision, but it does not replace conservative planning or correct wiring.
Test the Circuit Before Relying on It
Use separate pre-energizing and live-commissioning checks. General electrical-safety guidance supports de-energizing and inspecting before work and stopping when the installation cannot be confidently verified; the DOE Electrical Safety Handbook provides general background for that approach. A multimeter check alone cannot certify cable sizing, fuse coordination, battery condition, or sustained-load safety.
Pre-Energizing Checklist
- With every source disconnected, check conductor insulation, terminal fit, crimp quality, fuse or breaker placement, cable support, heat clearance, abrasion protection, and access for service.
- Verify positive and negative identification, the intended return path, and the absence of an accidental short before reconnecting sources. Follow the instrument and equipment instructions.
- Compare each fuse, breaker, cable, connector, and disconnect with the selected manuals and your documented current and length inputs.
Live-Commissioning Checklist
- Reconnect only as instructed, restoring batteries and charging sources according to the manufacturer-specified sequence while keeping the refrigerator branch under observation.
- Test the refrigerator under load. Measure at the refrigerator connection while it is operating, not only at the battery terminals, and inspect for voltage drop, loose terminals, damaged connectors, or a weak battery under load.
- Turn off the engine and observe whether the refrigerator remains on the auxiliary side without an unexpected starting-battery discharge path.
- Test each charging source separately when practical. Confirm that alternator, converter, solar, and DC-to-DC behavior matches the manuals before allowing multiple sources to operate together.
- Recheck heat and connections. Stop immediately for smoke, burning odor, arcing, rapid heating, damaged insulation, unexpected voltage, or repeated protection opening.
Repeated fuse opening or low-voltage shutdown is a fault to diagnose, not a reason to install a larger fuse. Stop and hire a qualified RV technician or automotive electrician when battery or charger compatibility is uncertain, factory electronics have been modified, high-current conductors are involved, charging sources are unmapped, or polarity, isolation, protection, grounding, or sustained-load behavior cannot be verified confidently.
Before leaving the refrigerator connected overnight or on a trip, compare the completed checks with the applicable manuals. If any safety-critical check remains uncertain, get a qualified professional to review the installation.
FAQs
Use these answers to resolve common installation decisions and identify when the manuals or a qualified professional should guide the next step.
Can I Use the RV's Existing 12-Volt Outlet for the Refrigerator?
Only if you can verify the outlet's circuit protection, shared loads, cable condition and length, connector fit, and voltage at the refrigerator while it is operating. If any of those details are unknown, or the outlet is shared with sensitive loads, a dedicated protected branch is the more checkable approach.
How Do I Prevent a DC-to-DC Charger and RV Converter From Conflicting?
List every source connected to the auxiliary battery, then compare battery chemistry, charge profiles, current limits, control behavior, and approved connection arrangements in each manual. A converter and DC-to-DC charger should not be operated together by assumption; the final arrangement may require a qualified installer when the controls or wiring are unclear.
What If the Refrigerator Shuts Off Even Though the Auxiliary Battery Is Charged?
Measure voltage at the refrigerator while it is running, then inspect the complete branch for voltage drop, loose or corroded terminals, a damaged connector, a weak battery under load, unsuitable temperature settings, or an overloaded shared circuit. Resting voltage at the battery cannot reveal every fault in the live branch.
Should I Add Solar Power to a Dual-Battery Refrigerator System?
Solar is useful only when it addresses a defined charging gap. Compare total daily loads, expected sun and parking conditions, controller-to-battery compatibility, wiring losses, and usable battery energy. Solar supplements charging planning; it does not replace branch protection, correct cable selection, isolation checks, or monitoring.
When Should I Stop a DIY Installation and Hire a Qualified Professional?
Stop when battery or charger compatibility is uncertain, factory electronics have been modified, high-current conductors are involved, multiple charging sources cannot be mapped, or you find heat, damage, repeated trips, or unexplained voltage. Professional review is also the right next step when polarity, isolation, protection, grounding, or the complete return path cannot be verified.
