An ice maker is ready to harvest when its control system detects that the programmed ice-forming condition has been met. In many commercial cube machines, that condition is reached when growing ice contacts an ice-thickness probe. Other cube-machine designs use a water-level float or another model-specific control instead. The controller then ends the freeze cycle and begins harvest.
The key point is that an ice-thickness sensor is not universal. A "ready" signal depends on the machine's ice-making design, not simply on how long it has been freezing.
What the Sensor is Actually Detecting

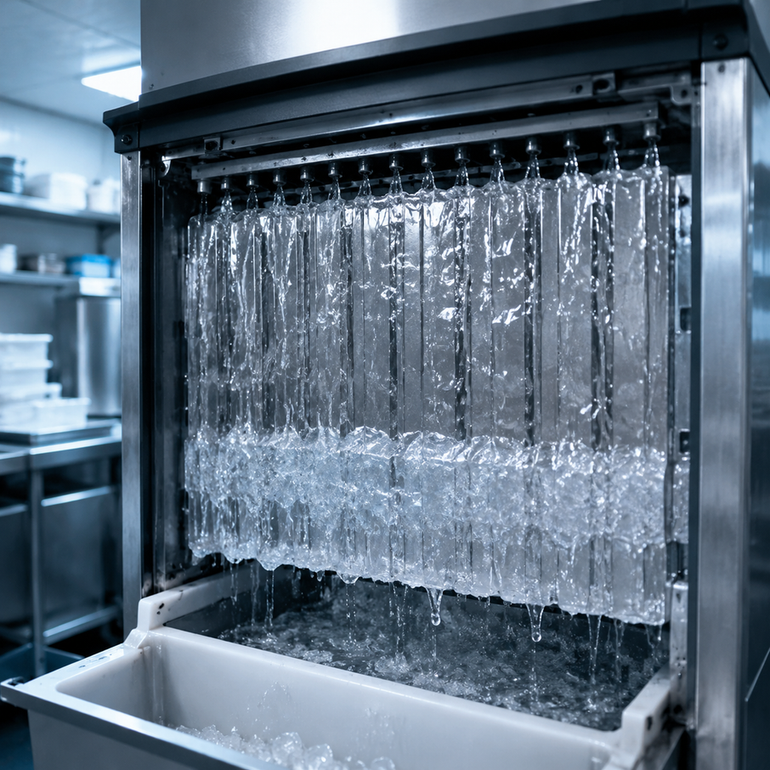

Commercial batch cube machines often build ice by repeatedly circulating water over a cold evaporator surface. As water freezes, the ice layer grows until the machine reaches its intended harvest condition.
| Machine Arrangement | What Ends the Freeze Cycle |
|---|---|
| Cube machine with a thickness probe | Ice reaches the probe at the target thickness. |
| Cube machine with a water-level float | A change in reservoir water level causes the float switch to change state. |
On a probe-based machine, the sensor is positioned so the growing ice eventually reaches it. That contact tells the control board that the ice has reached the intended thickness, prompting a transition from freeze mode to harvest mode.
A float-based system reaches the same operational decision differently. Rather than waiting for ice to touch a probe, it uses a water-level change during freezing as the condition that ends the cycle.
Not every sensor near the ice-making area measures thickness. Bin thermostats, infrared sensors, and mechanical curtains may manage ice storage or confirm that ice dropped during harvest. Those controls can be important to production, but they do not necessarily determine when the ice is thick enough to release.
From Freezing to Harvest
For many commercial cube machines, how an ice maker moves from freezing to harvest can be summarized in a clear sequence:
- Freeze: A pump circulates water from a trough or reservoir across the cold evaporator. Ice forms gradually on the freezing surface.
- Ready Decision: The thickness probe, float switch, or applicable control reaches its programmed condition.
- Harvest: Many cube machines route warm refrigerant gas through the evaporator. This warms the surface slightly so the formed ice can loosen and fall.
- Release Confirmation and Restart: A harvest curtain or comparable control may detect whether the ice dropped. Depending on the machine's programming, a failed release can extend harvest, trigger a retry, or display an error. A successful release allows the next cycle to begin.
A brief change from freezing to release is therefore normal on a cube machine designed for batch harvest. A machine that remains in freeze mode far longer than usual, or repeatedly fails to release ice, is not necessarily reporting a failed thickness sensor---but its cycle is not completing as intended.
Nugget and flake machines should not be interpreted through the same lens. They use continuous ice-forming systems such as freezing cylinders, drums, or auger-based mechanisms, rather than the batch cube process described above.
Why Thickness Settings Vary by Model
Some cube machines allow the intended ice bridge or thickness to be adjusted. In an adjustable bridge-sensor arrangement, the distance between the sensor and the ice grid determines the formed ice height.
For that specific arrangement:
- Moving the bridge sensor farther from the grid produces thicker ice.
- Moving it closer produces thinner ice.
A thicker ice bridge takes longer to freeze. If the bridge is too thin, ice may shatter during harvest; if it is too thick, the cubes may not separate properly when released.
That relationship is not a universal adjustment rule. Depending on the model, thickness-related settings may use an adjustment screw, electronic plus/minus controls, a float position, a water-level arm, or an adjuster knob. The available control---and even the direction of adjustment---must be confirmed in the manual for the exact machine.
Why Thin Ice or Long Freeze Times Do Not Always Mean a Sensor Fault
A thickness probe can affect cube size and harvest performance when a machine actually uses one. A dirty or misadjusted probe may lead to ice that is too thin, too thick, or difficult to harvest.
But similar symptoms can come from conditions that affect ice formation itself.
| Observed Behavior | Possible Operating Category |
|---|---|
| Thin, small, hollow, or incomplete cubes | Restricted or faulty incoming water flow |
| Uneven cubes or longer freezing | Poor water circulation over the evaporator |
| Lower output or long freeze cycles on an air-cooled machine | Inadequate condenser airflow |
| Poor ice quality, longer cycles, or poor harvest | Water-quality issues or deposits affecting water flow |
Scale, slime, or debris in a water trough can affect water movement and ice quality. Poor water quality can also contribute to restricted flow, longer freeze cycles, and poor harvest. On air-cooled machines, inadequate airflow at the condenser can make freezing less efficient, causing low production or extended freeze times.
These conditions do not prove that a sensor has failed. They show why the ready signal must be understood alongside the machine's water flow, ice formation, and heat-rejection performance.
Identify the Control Before Interpreting the Cycle
The most useful first step is to identify the machine type and its control arrangement. A commercial batch cube machine may use a thickness probe or a float-based harvest condition; a nugget or flake machine follows a different ice-forming process; and bin-level controls serve a separate purpose from thickness detection.
A normal ready signal depends on both the correct sensing or control method and stable operating conditions. Check the official Euhomy documentation for your exact model before changing any setting or interpreting an unusual cycle. If the machine repeatedly harvests too early, freezes for too long, or fails to complete a harvest cycle, contact support with the model-specific behavior and any displayed error information.
