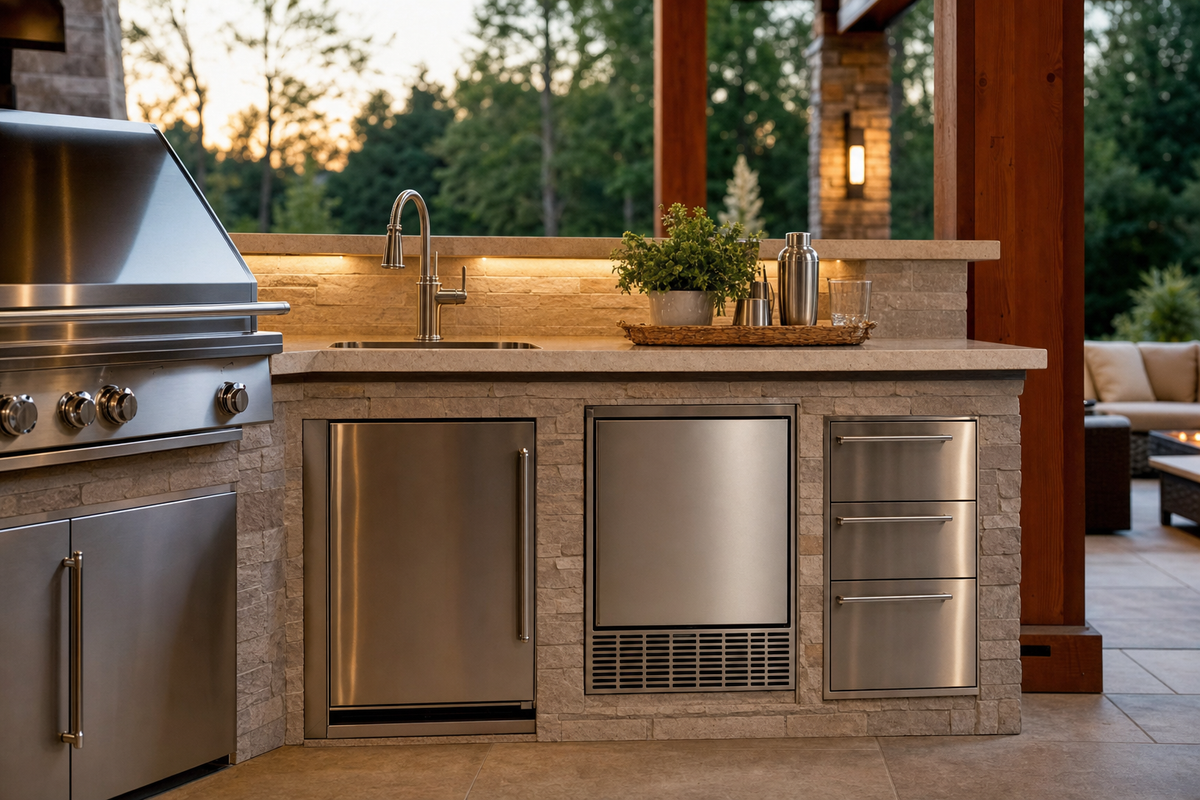

A built-in ice maker can make an outdoor bar feel finished, but it is not simply a countertop appliance pushed into a cabinet. The installation has to solve five separate problems: weather exposure, cabinet fit, potable water, drainage, and safe power. Miss one—especially the drain or front airflow—and the machine may leak, overheat, or become difficult to service.
The safest sequence is to confirm the appliance and site are compatible, rough-in utilities while the cabinet is open, then connect and test the machine before closing up the kitchen.
Confirm the ice maker and the location are compatible
Start with the model’s installation manual, not the cabinet opening. Look for an explicit outdoor-use or outdoor-rated designation. An indoor-rated unit should not be treated as outdoor-safe because it has a stainless-steel exterior or sits under a countertop. Outdoor kitchens expose appliances to wind-driven rain, humidity, temperature swings, direct sun, and freezing conditions.
Also check the manufacturer’s operating-temperature limits and placement restrictions. A covered patio may still be too hot, too cold, or too exposed for a particular machine. If the location cannot stay within the specified environment, move the ice maker into a protected service area and transfer ice to the bar instead.
Before cutting the opening, record these details from the manual:
- Finished cutout width, height, and depth
- Door-swing and front-clearance requirements
- Location of the water inlet, drain outlet, power cord, and air grille
- Whether the unit uses a gravity drain or an integral drain pump
- Required water pressure, tubing, filter, and shutoff valve
- Electrical rating and receptacle or hard-wiring instructions
- Clearance needed to remove the unit for service
Do not copy dimensions from another 15-inch or undercounter model. “Built-in” describes the installation style, not a universal size or utility layout.
For a selection checklist before installation, see how to choose an ice maker for an outdoor kitchen.
Plan the rough-in before the countertop is installed
Draw the cabinet bay, appliance face, countertop overhang, and every utility on a simple elevation or side view. The goal is to make the connections accessible without crushing a hose or trapping the power cord behind the unit.
Leave the manufacturer’s specified space behind the machine for the water, drain, and electrical connections. Keep the shutoff valve and any accessible filter where you can reach them after installation. Avoid placing a valve directly behind a point that the cabinet or appliance will press against.
Plan service access as carefully as the initial installation. The unit may need to slide forward for cleaning, repairs, or replacement. Do not permanently block that path with framing, trim, a fixed shelf, or a bar support. If a door or panel will conceal the machine, confirm that it can be removed and that it does not obstruct the ice maker’s front grille while operating.
If the kitchen is still being built, run a test piece of tubing and a temporary cord through the intended route. Check that the appliance can slide in without sharp bends, pinched lines, or strain on fittings.
Install the drain first
Water entering the ice maker must have a reliable path out. Drain design is often the make-or-break part of an outdoor installation.
Read the manual to determine whether your model requires:
- A gravity drain that continuously falls to an approved drain point
- A factory-installed or optional pump
- A particular drain-hose size or air-gap arrangement
- A floor drain, standpipe, sink connection, or other approved outlet
A gravity drain cannot run uphill. It needs a continuous downward route and must not sag into a low spot where water can sit. The outlet must also be positioned as the manual specifies; some built-in units cannot drain directly beneath their solid base. A pump-equipped model still needs a correctly routed, secured drain line and a suitable discharge point.
Use a drain connection that is appropriate for the site and local plumbing requirements. Do not send discharge onto the patio, into a cabinet base, or somewhere it can freeze and back up. Secure the hose so vibration, cabinet movement, or a person working under the counter cannot pull it loose.
Before sliding in the appliance, pour an appropriate amount of water through the drain path if the manufacturer’s instructions allow it. Confirm that it flows freely, does not back up, and cannot spill into the cabinet. A licensed plumber is the right choice when a new floor drain, pump discharge, trap, or alteration to the home’s plumbing is required.
Provide potable water with a shutoff
Connect the machine only to the potable cold-water supply specified by its manual. Install a dedicated shutoff valve close enough to reach without dismantling the kitchen. Use the tubing, fittings, filter, and pressure range approved for that model; do not assume that a refrigerator line or an existing hose is suitable.
Shut off the supply and relieve pressure before making the connection. Keep the line away from sharp metal edges and hot surfaces, and leave enough gentle slack for the appliance to move forward for service. A kinked line can restrict flow; an overstretched line can leak when the unit is pushed into place.
If the appliance includes a filter, install and flush it according to its instructions before judging water flow or ice quality. Check every connection with the water on, then check again after the machine has operated. A dry cabinet on the first inspection does not prove that a fitting will remain leak-free during repeated cycles.
Do not use a reverse-osmosis or heavily treated water supply unless the manufacturer specifically permits it. Such systems can change pressure or water chemistry in ways that affect operation. When water pressure, filtration, or backflow protection is uncertain, ask a plumber or the appliance manufacturer rather than improvising.
Have the electrical work completed safely
Power requirements vary by model. Use the nameplate and installation manual for voltage, frequency, amperage, grounding, circuit, and receptacle requirements. Never choose a breaker, wire size, or outlet based on the cabinet size or on another appliance.
Outdoor wiring is a job for a qualified electrician familiar with local code and wet-location requirements. Ask the electrician to confirm the circuit, grounding, weather-resistant equipment, receptacle location, disconnecting means, and required GFCI protection for your installation. Local rules and the appliance instructions control; even manufacturer guidance can differ between models and jurisdictions.
Do not use an extension cord, defeat the grounding pin, or hide a connection where water can collect. Keep the receptacle and cord where they will not be crushed when the ice maker is pushed into the bay. Turn off power at the source before making or inspecting connections. The Consumer Product Safety Commission’s electrical safety checklist is a useful reminder to protect outdoor and wet-area electrical equipment and to test GFCI protection where it is installed.
For a deeper look at the electrical planning stage, read how to run wiring for an undercounter ice maker. It does not replace your model manual or local electrical inspection.
Preserve airflow and weather protection
Built-in does not mean sealed inside a closed cabinet. Many undercounter machines draw and discharge air through a front grille. Keep that grille fully open and do not cover it with a decorative door, trim, towel, storage bin, or countertop overhang that the manual prohibits. A restricted air path can reduce performance and stress components.
At the same time, protect the appliance from direct rain and runoff. The countertop should not channel water toward the grille, controls, door seal, or rear connections. Avoid installing the machine next to a grill where grease, heat, or sparks reach it. Follow the manufacturer’s minimum separation and shelter requirements rather than relying on a roof alone.
Do not caulk the unit permanently into the opening unless the manual specifically calls for it. It needs to remain removable, and blocked service panels can turn a minor repair into cabinet demolition.
Set, connect, and level the appliance
Once the utilities and opening are ready, use this order:
- Inspect the unit and bay. Remove packaging, check for shipping damage, and verify that the opening matches the manual. Make sure the floor can support the appliance and that the door can open fully.
- Position the lines and cord. Place the water line, drain hose, and cord where they will not sit beneath a leveling foot or rub against the cabinet. Keep fittings from contacting sharp edges.
- Connect the drain. Attach the gravity or pump drain exactly as specified and secure it. Confirm its fall or discharge route before the unit hides the connection.
- Connect the water supply. Attach the approved line to the inlet, open the shutoff slowly, and inspect for leaks. Do not power the machine while a connection is being repaired.
- Level the unit. Check side to side and front to back with a level, adjusting the legs or the prepared platform as the manual describes. A unit that is out of level can drain poorly or operate incorrectly.
- Connect power. With the electrical work complete and dry, plug in or connect the appliance as directed. Never force the unit into place while the cord or fittings are under tension.
- Slide it into the opening. Move it slowly, stopping if a line kinks or the door alignment changes. Recheck the level and make sure the front grille is not covered.
The exact connection order may vary, so the model manual wins if it differs. This general sequence is based on common built-in installation requirements found in manufacturer guides, including clearance for rear utilities, unobstructed front airflow, potable water, leveling, and leak checks. For example, this installation guide illustrates why those details must be confirmed for the specific model.
Commission the machine before closing the kitchen
Do not finish trim or load the ice bin immediately. Run a controlled first test:
- Confirm that the unit is level and the front air path is open.
- Check the water inlet, filter, drain, and nearby cabinet floor for leaks.
- Verify that the drain carries water away without backing up or pooling.
- Confirm that the door, bin, controls, and service panels operate normally.
- Follow the manual’s cleaning, sanitizing, flushing, and first-batch discard instructions.
- Listen for unusual vibration, rubbing, or a pump that runs continuously.
- Inspect again after the first operating cycle and after the machine has made ice.
If water appears in the cabinet, the drain backs up, the grille becomes unusually hot, a breaker or GFCI trips repeatedly, or the machine does not fill, stop using it and isolate the relevant utility. Do not repeatedly reset a protective device or bypass it to keep making ice. Have the installer, electrician, plumber, or manufacturer diagnose the cause.
Outdoor installation checklist
Before calling the job complete, confirm all of the following:
- The exact model is approved for the intended outdoor environment.
- The cutout, door swing, and removal path match the manual.
- The front grille and required airflow path are unobstructed.
- A reachable water shutoff and approved potable supply are installed.
- The drain type, slope or pump discharge, and outlet are correct.
- The cord, receptacle, grounding, and outdoor protection meet the manual and local code.
- The unit is level, stable, sheltered from runoff, and away from grill heat and grease.
- Water and drain connections have been leak-tested.
- The first batch and sanitation steps follow the manufacturer’s instructions.
- Cabinet trim does not prevent ventilation or future service.
The practical rule is simple: rough-in the water, drain, power, airflow, and service access before the cabinet is finished. Once those dependencies are verified, placing and leveling the ice maker is the easy part—and the outdoor bar is far less likely to hide a leak or an unsafe connection behind its finished surfaces.
